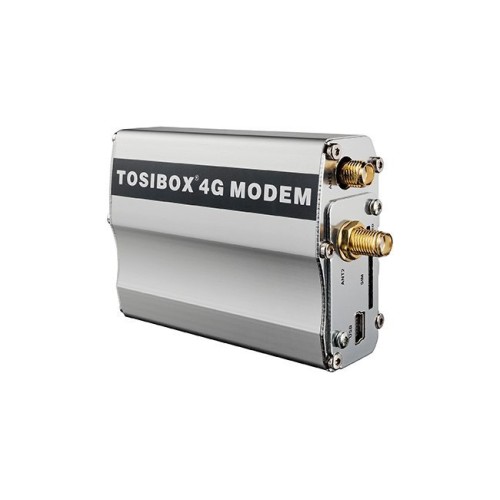

4G Modem Technical Data

Modem requires Lock software version v3.1.1 or higher

TB4GM2EU

Supported bands
FDD LTE:B1/B3/B5/B7/B8/B20
UMTS B1/B5/B8
GSM 850/900/1800/1900MHz

Ominaisuudet:

• LTE downlink speed max. 100 Mbps

• LTE uplink speed max. 50 Mbps

• HSPA+ downlink speed max. 42 Mbps

• HSPA+ uplink speed max. 5.76 Mbps


• Automatic APN configuration via TOSIBOX® Lock


• Sending and receiving SMS using AT commands


• Intelligent automatic reconnect and error recovery with TosiOnline™ technology


• USB 2.0 High Speed interface, mini-USB connector


• 2x SMA antenna connectors


• RS-232 serial interface


• SIM card slot


• Power on / data LED


• DIN rail or wall mounting


• Aluminium casing, sealing IP20


• Operating temperature: -25°C ... +70°C


• Storage temperature: -40°C ... +70°C


• Dimensions: 90 x 55 x 25 (mm)

• Weight: 124 g
